Product Introduction (8,3) Product Group: Inverter Product Line: EM-A Gearmotors (compatible mechanical gearboxes)

We are pleased to announce the release of new drive solution from Mitsubishi Electric: EM-A Motor + Tramec/Varmec gearboxes from the Inverter family.

8.3 Supplement – product designation and SAP codes

EM-A compatible gearboxes are setup in the system in the most common configuration in terms or gearbox output (default standard Tramec configuration) and mounting position (horizontal). However all possible modifications (gearbox output, accessories) offered by Tramec are available also for our product. To request other than standard configuration please contact your regional PM.

















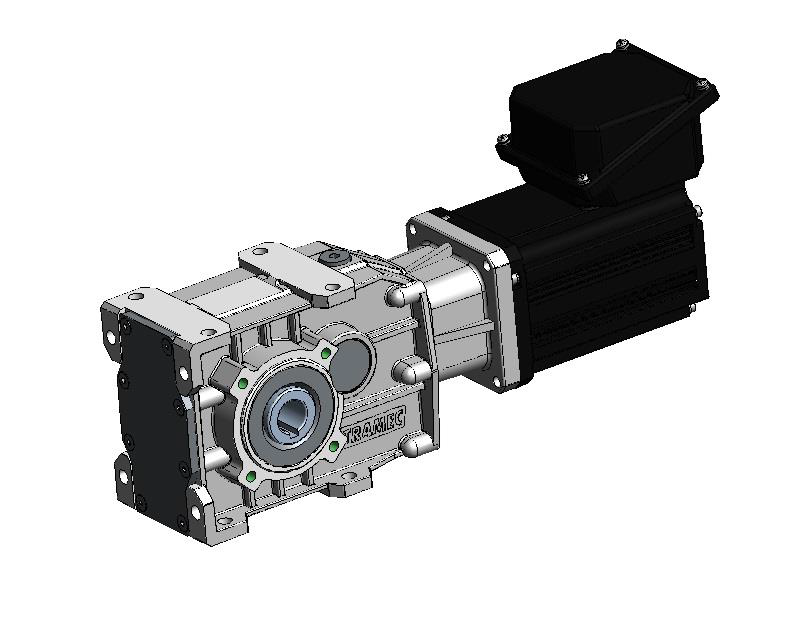

Helical paralell shaft-mounted RFV models designation



RFV

25

2

H25

53.89

90S14

H1





1

2

3

4

5

6

7

8

9



1

Gearbox model

RFV – helical parallel shaft-mounted

2

Gearbox size

25, 35, 40* etc.

* not all gearbox sizes from Varmec lineup are compatible with EM-A. For more details please consult with regional PM.

3

Number of stages
  1. – 2 stage
  2. – 3 stage

4

Output type

H – hollow shaft

- shaft diameter (e.g. 25 = ∅ 25mm

5

Actual ratio

Actual gearbox ratio

6

Input flange

F90S14 – for 0.1K and 0.2K motors F110S19 – for 0.4K and 0.75K motors F125S25 – for 1.5K and 2.2K motors



Compatibility with motors 3.7-7.5K is planned for the future.

7

Mounting position

H1 etc.

For more details please check Varmec RFV catalogue.

9

Option 1

E.g. output flange, backstop device, torque arm, shrink disc, solid shaft.

Accessories are not limited to 2 types. For more details please consult with regional product manager.

10

Option 2



Desired configuration can be checked at Tramec configurator.

RFV - Shaft-mounted gearbox - Varmec https://varmec.partcommunity.com/3d-cad-models/sso/rfv-shaft-mounted-gearbox-varmec?info=varmec%2Frfv%2Frfv_asmtab.prj&cwid=1261
