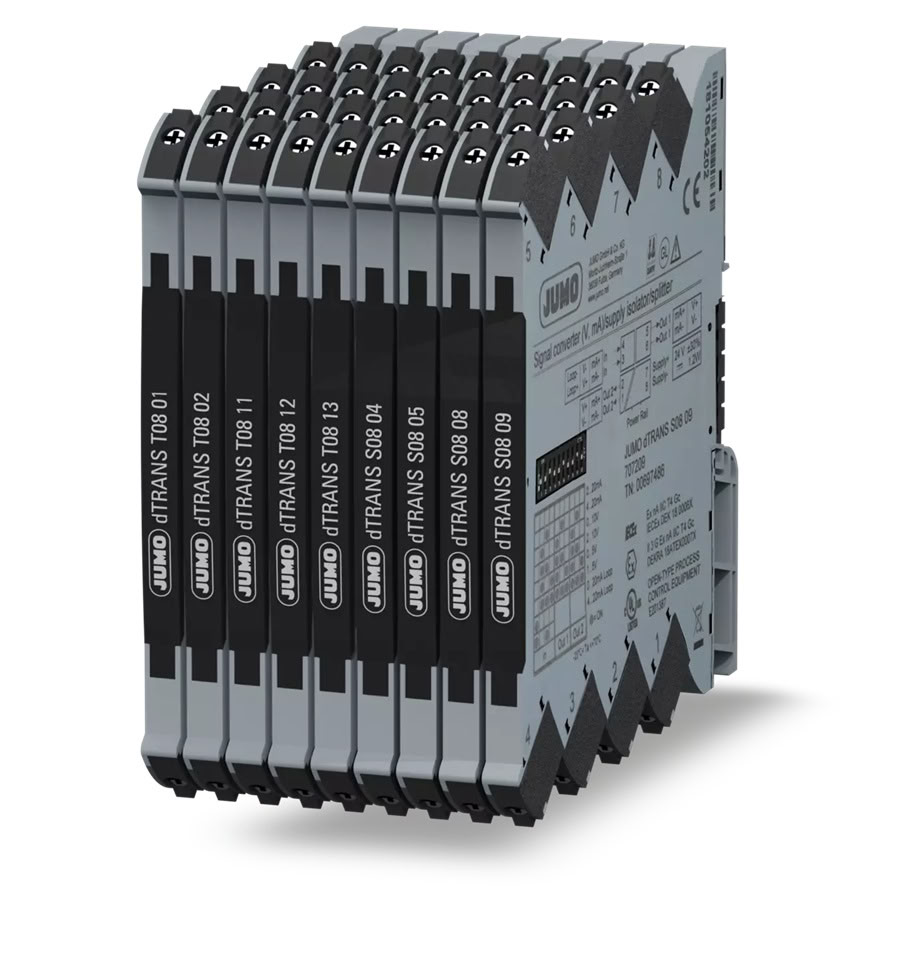

JUMO dTRANS T08 та JUMO dTRANS S08 — Compact Size, Powerful Performance

The JUMO dTRANS T08 and JUMO dTRANS S08 signal transmitters offer top-tier performance in a remarkably compact 6 mm design, saving space in control cabinets while ensuring highly accurate and reliable signal transmission.

Key Advantages:

Small Width

• Only 6 mm wide – saves valuable space.
• Mounts on DIN rail or bus bar without air gap requirements.

High Accuracy and Reliability

• Basic accuracy up to ±0.05 % in all signal ranges.
• 2,500 V AC galvanic isolation.
• High EMC immunity per NAMUR NE21.

Fast Response Time

• Rapid signal conversion.
• <30 ms response (temperature transmitter).
• <7 ms response (signal/isolation converter).
• Ideal for fast-changing variables (pressure, flow, temperature).

Low Temperature Drift

• Operating temperature range: -25 to +70 °C.
• Low temperature coefficient <0.01 %/°C.

Flexible Configuration

• Up to 1,000 measuring ranges via DIP switches.
• Input/output settings adjustable on-site – no PC required.
• HART® versions support PACTware and HART® Communicator.

User-Friendly Diagnostics

• Front LED shows device status and setup errors instantly.

• Operates up to +31.2 V DC – protects against wiring errors.
• Vibration resistance up to 4 G – ensures stable performance.
• Low power consumption – reduces cabinet heat load.
