Cubical All-Rounder: UB*-F42 Series Ultrasonic Sensor with IO-Link

With the UB*-F42 series, Pepperl+Fuchs is expanding its already wide range of ultrasonic sensors with a true all-rounder that is suitable for a variety of applications: It can detect objects, record material consumption, measure fill levels, and monitor travel. The IO-Link interface enables it to be integrated into the IIoT. In addition to the actual measured values, the device transfers extensive process and status data that can be used for optimized control and predictive maintenance.

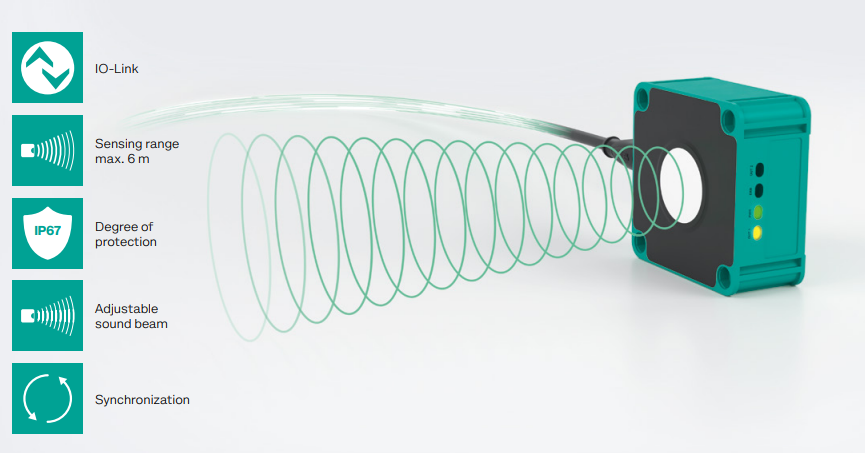

Highlights of UB*-F42 Ultrasonic Sensors

• Versatile in use due to a wide range of features, IP67 degree of protection, small dead bands, and universal measuring principle
• High machine availability: integrated IO Link interface enables access to sensor parameters, diagnostic and process data
• Fault free operation: simple sensor synchronization when using several sensors in parallel
• Adjustable sound beam for optimal adaptation to the application without loss of range

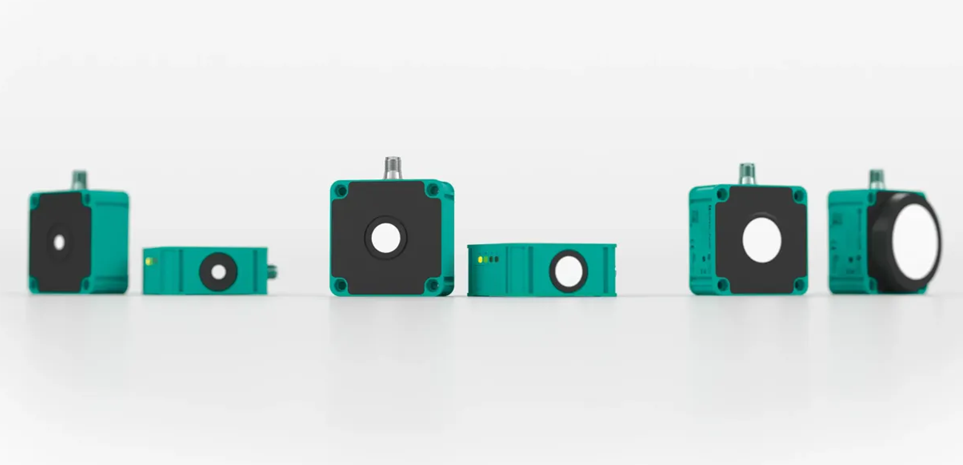

• Front and sidelooker variants in a wide variety of sensing ranges enable easy integration even in tight installation conditions

View products: UB*-F42 ultrasonic sensors
