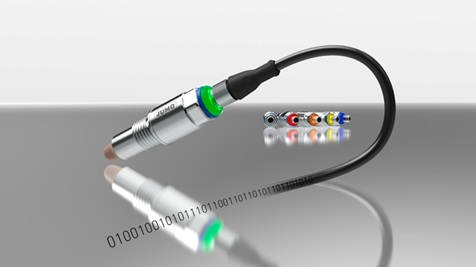

Capacitive Level Switch JUMO ZELOS C01 LS

JUMO ZELOS C01 LS – an advanced capacitive level switch that ensures precise control of liquid and solid levels. With unique autocalibration and IO-Link support, this sensor minimizes downtime and enhances production efficiency. The switch is ideal for hygienic, industrial, and railway applications.

Technical Specifications:

• Certification: Railway technology [DIN EN 50155], DNV, ATEX, IEC Ex, WHG, UL, FDA, 3A, EHEDG

• Autocalibration: Available

• Status Display: According to IO-Link, NE107, or customized to meet customer requirements

• Self-monitoring: According to NE107 and VDI/VDE 2650

• Medium Temperature: -40 to +200 °C

• Repeatability and Hysteresis: +/- 1 mm

• Output Signals: PnP, nPn, push-pull, or IO-Link

• Switching Function: Antivalent circuit, normally open contact, normally closed contact

• Materials in Contact with Medium: PEEK; PEEK, FKM, 316L for variants with sliding connection

• Protection Type: IP67 / IP69
