Reliable Water Level Control in Dams: GSR Ventiltechnik Introduces Type 24 Piston Valve
Dams play a critical role in regulating water flow: they store water in reservoirs and release it in a controlled manner to the downstream through bottom outlet pipes. This requires extremely reliable, durable, and precisely controllable valves in control, auxiliary, and safety systems — even under high pressures and varying flow conditions.

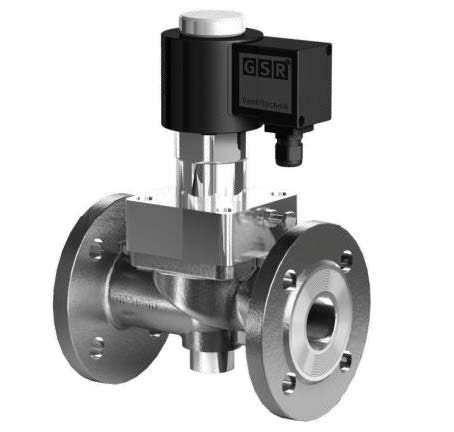

German manufacturer GSR Ventiltechnik GmbH & Co. KG offers a robust solution for dam applications — the force pilot-operated piston valve Type 24. This solenoid valve is particularly well-suited for drainage and venting systems in dams and reservoirs.
Key Features of Type 24:
- Force pilot-operated piston design — operates without minimum differential pressure
- Pressure range up to 40 bar
- Temperature range: −30 °C to +80 °C
- Seal materials: NBR, FKM, EPDM, PTFE
- Flange connection DN65 to DN300 (EN 1092-1)
- High flow rates (Kv up to 1400 m³/h)
- Optional ATEX approval for potentially explosive atmospheres
- 100% duty cycle (ED) and IP65 protection
- Long-term availability of spare parts kits
The Type 24 valve ensures safe and precise shut-off and flow control for clean neutral liquids and gases, making it an excellent choice for hydropower facilities, water treatment plants, flood control systems, and industrial water management.
Need the most suitable valve solution for your dam or water control process? Contact CSC-Automation — your trusted partner for GSR products in Ukraine!
Download the full Technical Data Sheet here: Type 24 Technical Data Sheet (ENG)
