New Model Added to the FR-A800 Series with High Functionality and High Performance

The slim model has been added to the 400 V class separated converter type inverters.

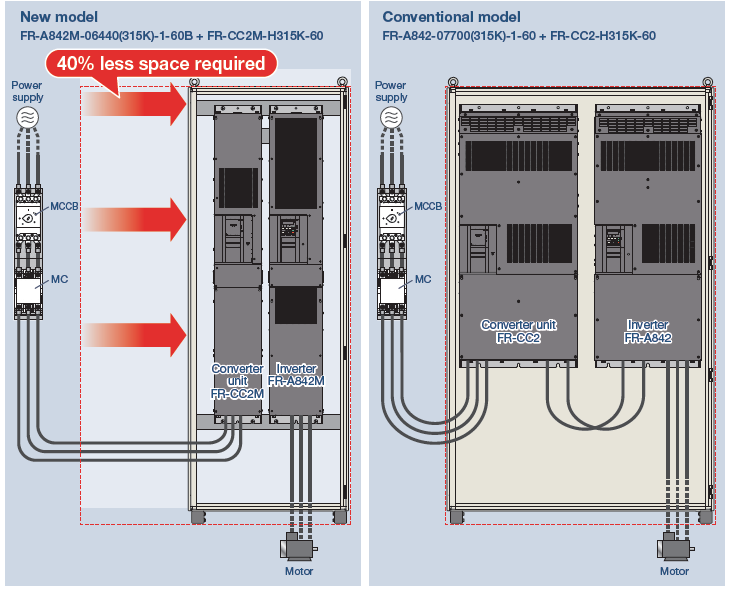

 ■ Slim structure

Downsizing of the enclosure contributes to cost reduction and the electric room's space saving.

■ Bus bar connection

Bus bar connection improves the storage efficiency.

Contributing to the cost reduction of the enclosure

Side by side installation and bus bar connection between terminals P/+ and N/- can reduce the distance between units to 20 mm.

Improved storage efficiency makes the enclosure downsized, which contributes to cost reduction.

Wire and space saving

A DC reactor and an EMC filter are built in the converter unit. The inverter with built-in brake transistor is also available.*

*: The FR-A842M-06440(315K) or lower has the built-in brake transistor.

Installation space and wiring work for stand-alone options are not required.
