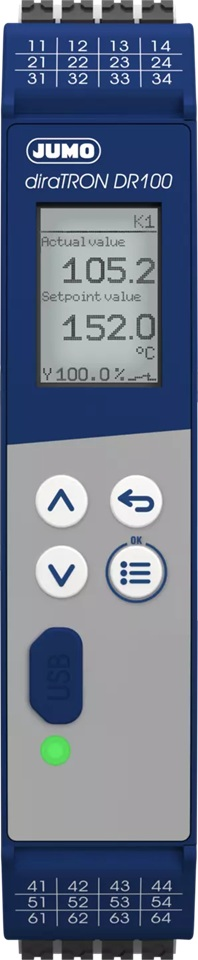

New JUMO diraTRON DR100 Universal Controller Now Available

JUMO has introduced the diraTRON DR100, a universal controller designed for DIN rail mounting (35 mm). This versatile device is suitable for controlling temperature, pressure, and various other process variables.

The diraTRON DR100 can operate as a two-state, three-step, or continuous controller with optional analog output. Its universal analog input supports RTD temperature probes, thermocouples (single and double), resistance transmitters, potentiometers, as well as current and voltage signals.

Key features include:

• User-friendly operation with a dot-matrix LCD display and simple menu navigation.
• Autotuning and PID control for optimized process regulation.
• Fast wiring with spring-cage terminals (PUSH IN technology).
• Optional RS485 interface with Modbus RTU protocol.
• Digital and relay outputs for flexible process integration.
• Compact design with the ability to connect up to 10 devices side by side.

Thanks to its modular options, the diraTRON DR100 is an efficient solution for industrial automation, offering high flexibility and reliability for modern process control.
