Introducing the JUMO flowTRANS US Series

JUMO We are excited to announce the launch of the JUMO flowTRANS US series, a new line of ultrasonic flow meters designed for precise and efficient flow measurement in various applications. These state-of-the-art devices offer numerous advantages, including low maintenance costs and high reliability.

Key Features: Suitable for both conductive and non-conductive media; Designed with no moving parts, reducing wear and tear; Ensures accurate measurements and process reliability; Can be installed without the need for a T-piece; Metal-free construction ideal for corrosive environments.

Applications: Water and environmental engineering; Chemical dosing; Heating, ventilation, and air conditioning; Electroplating plants; Pump construction

Technical Specifications:

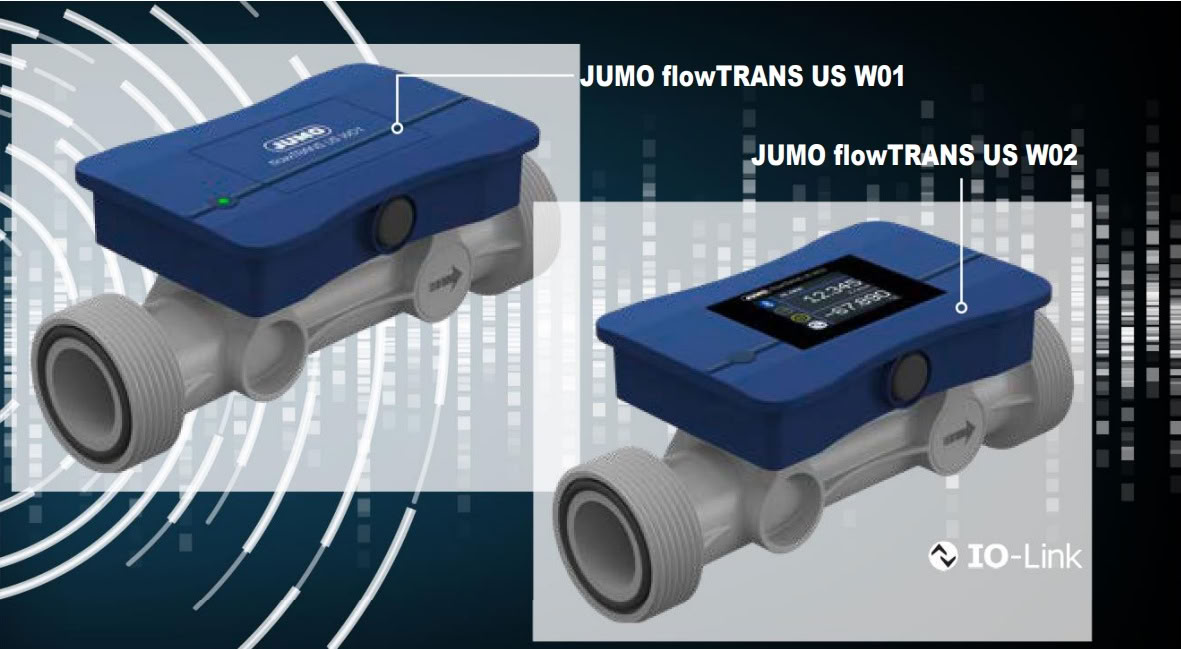

Models: JUMO flowTRANS US W01 and W02

Nominal Diameter: DN 15 to DN 32

Nominal Pressure: PN 16

Measurement Accuracy: 2% of measured value (W01), 1% of measured value (W02)

Measurement Dynamics: 1:100 (0.1 m/s to 10 m/s)

Process Connection: G-type external thread with built-in seal

Materials in Contact with Medium: PPSU, PEEK, EPDM (FKM)

Maximum Medium Temperature: Up to 80°C (up to 95°C with lower accuracy)

Maximum Ambient Temperature: Up to 70°C (W01), up to 60°C (W02)

Display: LED status indicator (W01), TFT display (W02)

Input and Output: Binary output (up to 10 kHz); analog output (4 to 20 mA)

Communication: IO-Link; Bluetooth (W02)

Protection Type: IP65

Power Supply: 18 to 30 V DC, SELV/PELV

Additional Measurement Parameters: Temperature and pressure (optional for W02)
