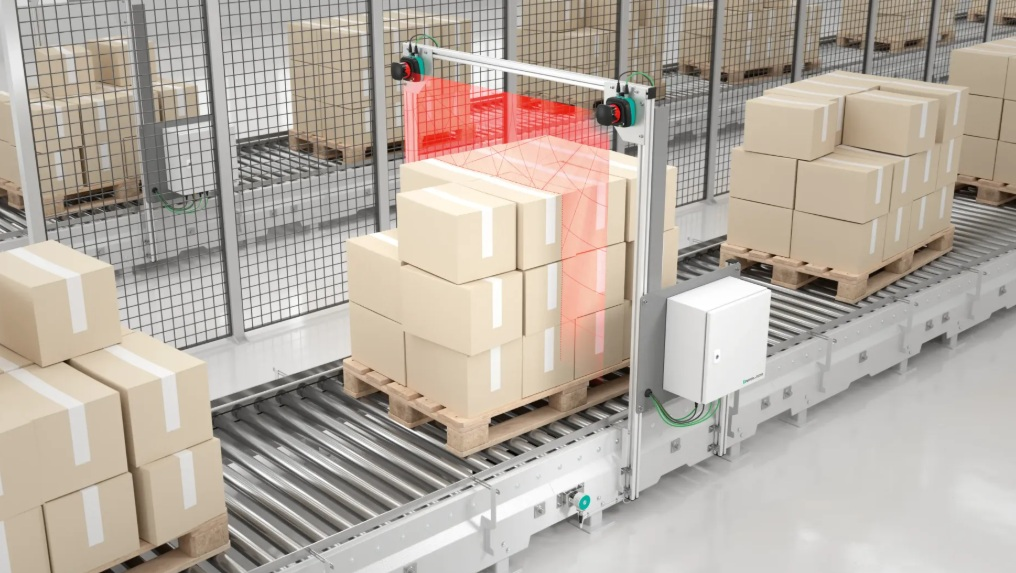

LiDAR Technology Detects Conveyor Belt Loads in 3-D

The Volume3D volume detection system from Pepperl+Fuchs measures flow rates with a high level of precision. The combination of LiDAR sensor technology, a rotary encoder, and an intelligent evaluation unit provides detailed data on volume, flow rate, and many other material handling parameters. The unique modular design of the system enables individual plant-specific solutions. The range of applications spans from intralogistics through to mining.

LiDAR sensors that use laser-based Pulse Ranging Technology (PRT) provide the basis for volume measurement. The devices "scan" the contours of the load in real time. Two device types with different properties are available for this purpose: Sensors in the R2000 series offer maximum accuracy of up to ±3 % with an angular resolution of 0.042°, while the R2300 series has a very high scan rate of up to 100 Hz. The optimal sensor can therefore be selected depending on whether the focus is on highly rugged and precise measurement or high throughput.
