Precise 3-D Measurements with the SmartRunner Measurer 3-D

Volume, Dimensions, Rotation, and Position Directly from the Sensor

The SmartRunner Measurer 3-D with integrated data processing sets new standards in industrial 3-D measurement technology. Using stereo vision technology, volume, dimensions, rotation, and position are calculated directly in the device—without any external image processing. Even at object speeds of up to 2.5 m/s, the intelligent vision sensor delivers precise results. Find out more about the high measuring accuracy, convenient setup, and versatile application possibilities of the new 3-D vision sensor from Pepperl+Fuchs.

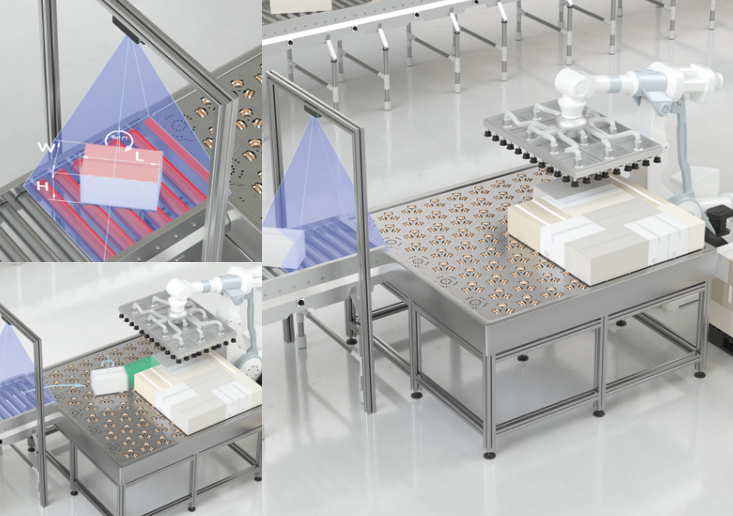

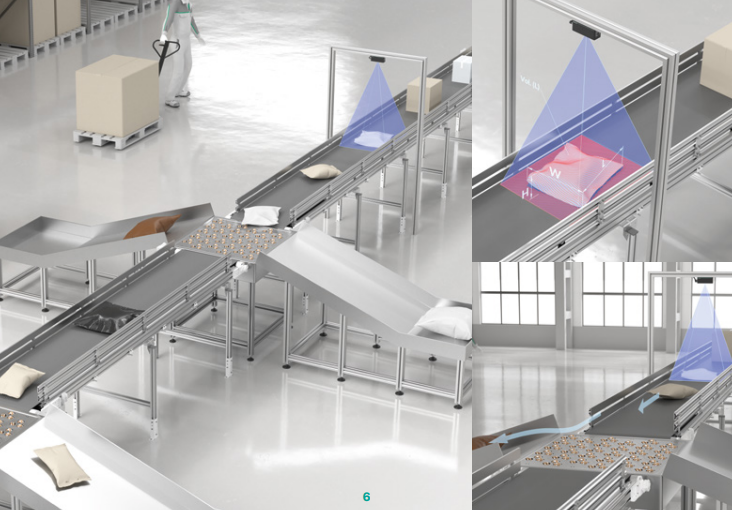

Precise Measurement Results for Static and Dynamic Applications

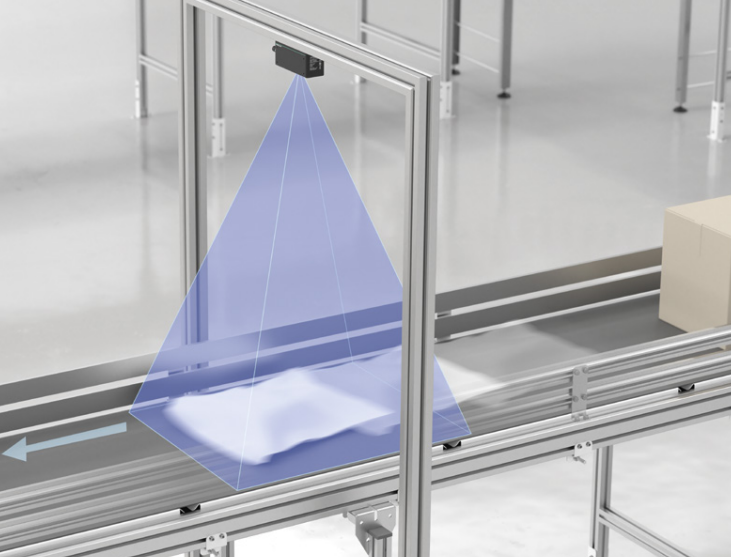

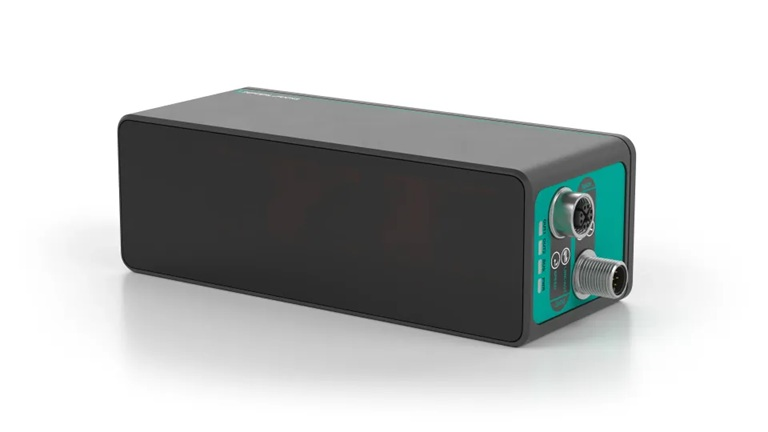

The new SmartRunner Measurer 3-D vision sensor captures the complete 3-D information of objects with just a single shot and calculates all relevant measured values for shape, position, and orientation directly in the device.

The basis for this precise object measurement is stereo vision technology. Two offset cameras capture the scene simultaneously from different perspectives. Based on the disparity between the two images, the SmartRunner Measurer 3-D uses triangulation to calculate the exact depth information and generates a complete 3-D image of the object—for both static and dynamic applications at object speeds of up to 2.5 m/s.

An integrated projector additionally casts a fine structured pattern on the object’s surface, providing stable reference points even on challenging materials. This allows the vision sensor to achieve high depth precision and repeat accuracy, regardless of color, surface, or material.

View products: SmartRunner Measuer 3-D
