Why Pepperl+Fuchs Industrial Encoders Hold Their Ground in Dirt, Shock, and Outdoor Conditions

Today, almost every automation vendor offers both optical and magnetic encoders. The real difference lies not in the word "magnetic", but in how the mechanics, electronics, and multiturn systems are engineered for specific environments. Pepperl+Fuchs focuses not on micron-level precision in sterile lab conditions, but on reliability where sensors face extreme daily loads: cranes, quarries, rolling mills, wind gusts, high-pressure washdowns, and offshore marine environments.

Explore the full product line in the official Pepperl+Fuchs Industrial Encoders Catalog

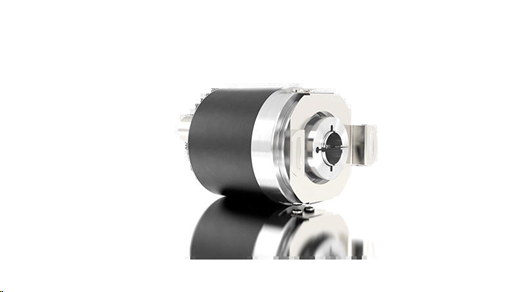

Pepperl+Fuchs ENA58IL magnetic absolute encoder: hollow shaft, compact 58 mm housing, non-contact sensing.

Optics Are More Precise in a Clean Room. Outdoors, Physics Wins

A classic optical encoder relies on a glass or plastic code disc and a light beam. In a clean, enclosed machine tool, this delivers maximum precision.

However, this principle falters the moment dust, scale, condensation, grime, washdowns, or structural vibrations appear. The optical beam clouds, pulse edges drift, and bearings absorb shaft runout. Pepperl+Fuchs shifted the focus: a magnetic field does not require a transparent disc, meaning surface dirt on the housing does not block the reading channel the way it does in optics.

Hall + Wiegand: No Gears and No Batteries

Absolute series such as ENA58IL and other absolute magnetic encoders combine a 2-axis Hall sensor for singleturn angle measurement with an energy-harvesting Wiegand sensor for revolution counting.

Field behavior and specifications are detailed in the official Pepperl+Fuchs technical documentation (PDF).

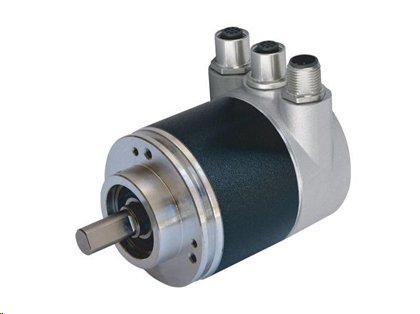

Pepperl+Fuchs EVM58 series absolute encoder with standard industrial connectors — typical appearance for cabinet and field cabling.

This is a fundamentally different approach compared to standard "budget magnetic" alternatives or legacy optical multiturn systems:

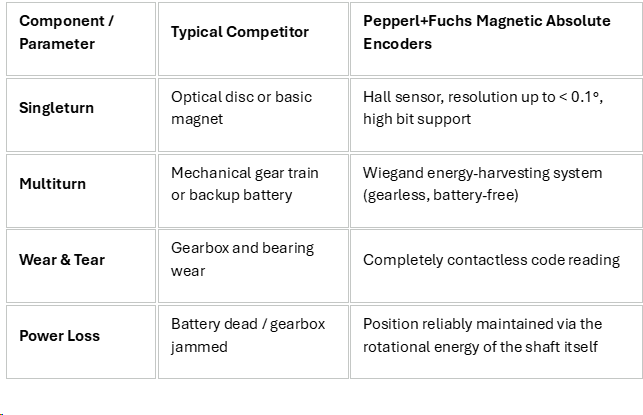

Component / Parameter Typical Competitor Pepperl+Fuchs Magnetic Absolute Encoders

Singleturn Optical disc or basic magnet Hall sensor, resolution up to < 0.1°, high bit support

Multiturn Mechanical gear train or backup battery Wiegand energy-harvesting system (gearless, battery-free)

Wear & Tear Gearbox and bearing wear Completely contactless code reading

Power Loss Battery dead / gearbox jammed Position reliably maintained via the rotational energy of the shaft itself

Mechanical gearboxes develop backlash over time and are vulnerable to shocks. Batteries degrade rapidly at +80 °C on crane rooftops or exposed outdoor poles. The Wiegand technology eliminates both risks, achieving a total resolution of up to 32 bits. This is no longer a "coarse 1-degree magnet." For cranes, conveyors, and mobile machinery, 0.1° accuracy is more than sufficient, while durability takes precedence.

Heavy-Duty Is Not Just a Label on a 58 mm Housing

The core distinction of industrial series lies in specialized mechanical engineering:

• Heavy-Duty Line (e.g., ENA42HD): Designed specifically for crane booms subject to constant shock loads, vibrations, and structural flexing.

• Ruggedized Execution (ENI90HD / ENI90HO): Features stainless steel housings, specialized offshore coatings, isolated shafts (protecting against up to 2 kV shaft currents), and high EMC resistance against powerful frequency drives.

• High Mechanical Load Capacities: Allowable shaft loads in heavy-duty versions reach approximately 180–270 N (with specific models supporting up to 300 N radial / 400 N axial).

• Ingress Protection: IP66, IP67, and IP69K ratings allow housings to withstand direct high-pressure hot water washdowns.

While many manufacturers offer robust options only as expensive custom builds, Pepperl+Fuchs provides fully cataloged product lines with comprehensive corrosion, moisture, and stray-current protection out of the box.

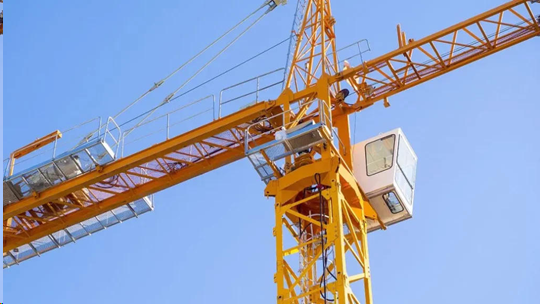

A typical heavy-duty application: a tower crane. Here, the encoder operates outdoors, exposed to impacts, wind, and temperature fluctuations—precisely the profile for which the Pepperl+Fuchs HD series is designed.

No Bearing — No Classic Point of Failure

For extreme applications (turbines, large generators, rolling mill stands), bearingless series (such as MNI20 / MNI40) mount a magnetic ring directly onto the equipment shaft while keeping the sensing head separate.

• The encoder bearing itself is completely eliminated, preventing it from absorbing destructive runout from large motors.

• Rotational speeds up to 30,000 rpm.

• Operation under significant radial shaft runout and elevated temperatures (select versions up to +100 °C).

Where Does Optics Remain Indispensable?

Naturally, Pepperl+Fuchs does not attempt to replace optical systems where angular seconds of maximum precision are required: precision machine tools, semiconductor manufacturing, or metrology labs remain the domain of specialized optics.

However, the Pepperl+Fuchs industrial portfolio covers a combination of features that competitors rarely offer together:

1. Explosion Protection: Ex ia, Ex d certifications for Zones 2/22.

2. Corrosion-Resistant Offshore Execution: Tailored for marine and port facilities.

3. Comprehensive Industrial Interfaces: SSI, CANopen, PROFIBUS, PROFINET, EtherCAT, SAE J1939.

Engineer’s Summary

• Clean room and enclosed gearbox: Standard optics from top brands.

• Crane, stacker crane, wind turbine, wash system, quarry excavator, port, rolling mill, or large motor with shaft currents: Pepperl+Fuchs magnetic and heavy-duty encoders significantly outperform standard universal sensors.

The selection criterion is simple: if a sensor on your application fails due to harsh environmental conditions and vibrations rather than a lack of resolution, it’s time to choose a different "physics of failure".
